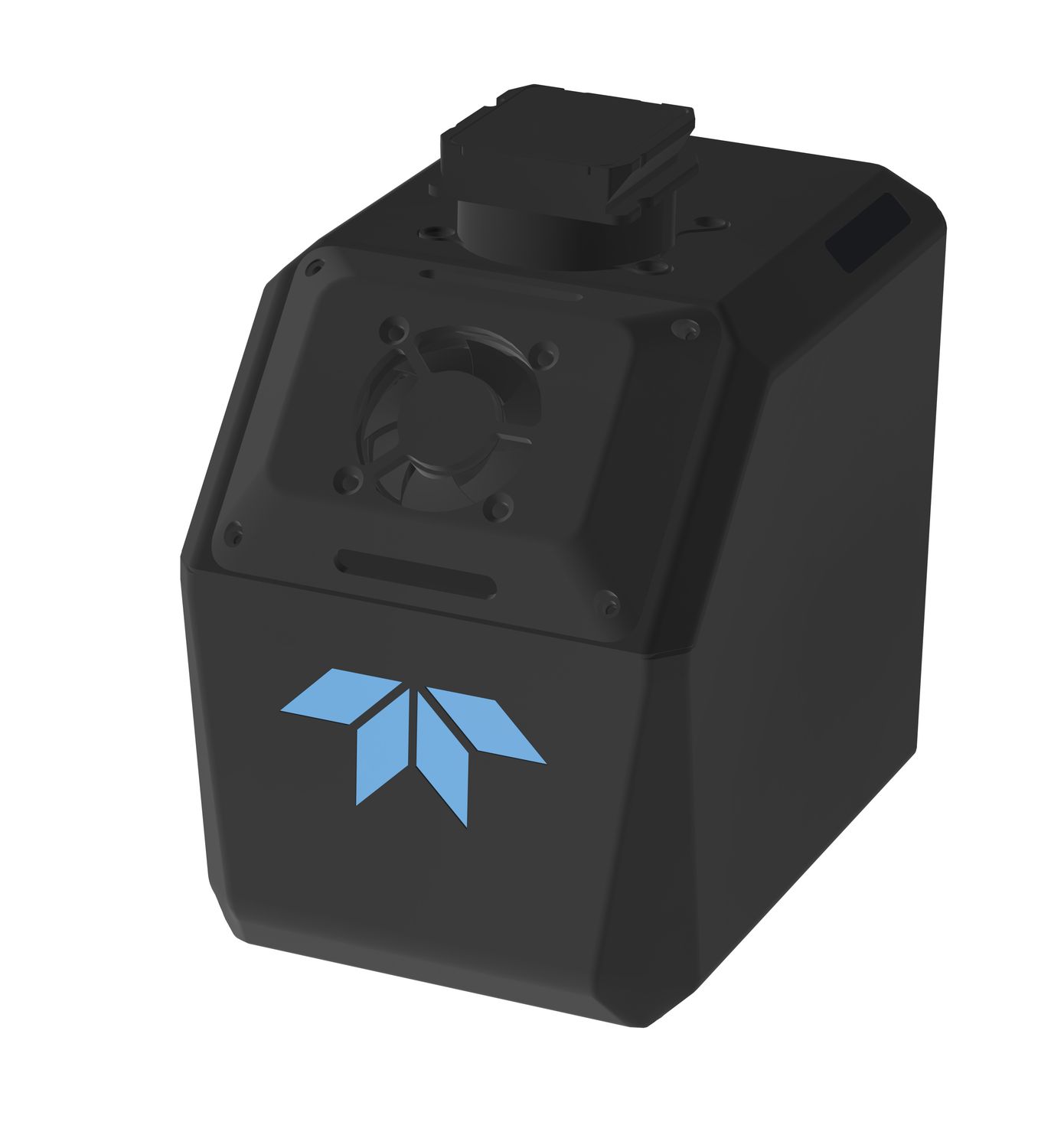

Teledyne EchoONE Powered by Inertial Labs RESEPI RESEPI Gen-II Core 5MP Embedded Colorization Camera

SYSTEM PERFORMANCE

System Accuracy 1.5cm

Long-range lidar with up to 8 returns per laser pulse Powerful eye-safe laser with 270m range to 20% reflectivity targets Flexibility to map large areas quickly from a high operating altitude, capture narrow electric utility conductors or wires, and penetrate thick vegetation with returns from both tree structure and ground

Wide-angle perspective 90 deg horizontal field of view with 4 unique +/- 10 deg vertical scan angles Wide horizontal field of view maximizes swath reducing flight time Vertical field of view captures utility poles and building walls

Precise data 5mm lidar ranging precision and 1.5cm georeferenced accuracy Low noise data results in crisp, detailed scans for modelling applications in utilities and transportation

Ultra-lightweight design Echo is the lightest weight UAV laser scanner with its performance Capture larger areas with increased flight time before needing battery swaps Compatible with smaller airline transportable UAVs and fewer transportation cases

Realtime georeferenced point cloud Georeferenced point cloud generated on-sensor in realtime Pilot QC review of LAS file to ensure project coverage prior to leaving site Realtime API for third-party customized solutions

High-accuracy inertial measurement unit EchoONE includes the Inertial Labs KERNEL-210 tactical grade IMU High accuracy inertial measurements ensure the accuracy and reliability of lidar point clouds when verified to ground control points

Integrated colorization camera EchoONE includes a 5MP global shutter camera and optional 61MP camera Colorized point clouds provide additional context not available with intensity alone Optional 61MP allows for simultaneous capture of high-resolution imagery for orthomosaics and inspection

Accessories not included with this price. Contact info@atlanticlaserscanning for a complete purchase price.
